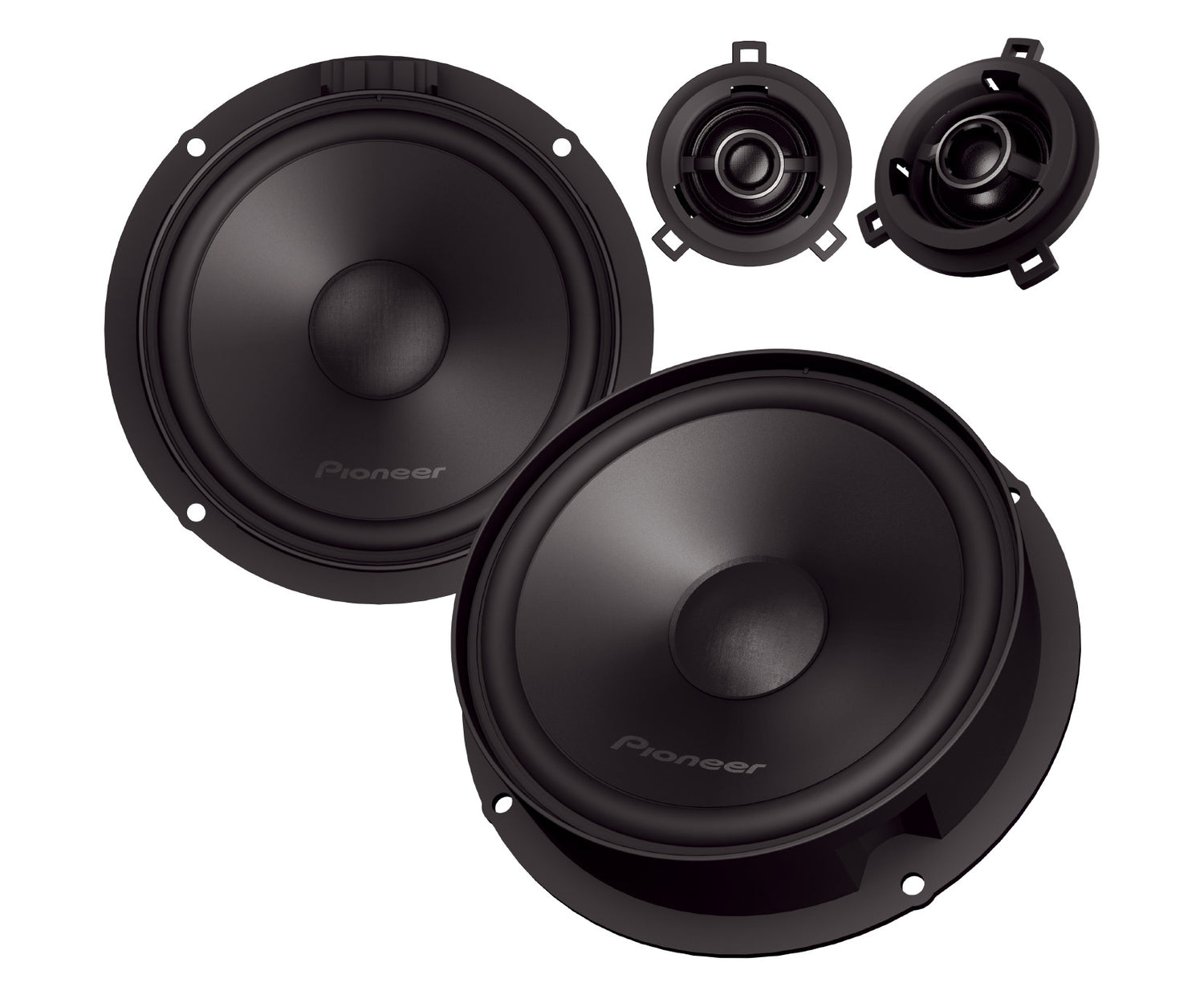

Pioneer TS-Q160C-VW 6.5" Component Speakers for Volkswagen, SEAT & Skoda

Upgrade the factory sound system in your Volkswagen, SEAT or Skoda with the Pioneer TS-Q160C-VW Perfect-Fit component speaker system.

This vehicle-specific 6.5-inch speaker upgrade combines two 16.5cm woofers with separate 30mm soft-dome tweeters, delivering clearer vocals, improved high-frequency detail and stronger, better-controlled bass than many standard factory speakers.

Designed for straightforward installation in compatible vehicles, the kit includes vehicle-specific mounting accessories and OEM-style connectors, reducing the need for separately purchased adaptors or extensive wiring modifications.

Key features

• Vehicle-specific Pioneer Q-Series speaker upgrade
• Designed for compatible Volkswagen, SEAT and Skoda vehicles
• Two-way component system with separate woofers and tweeters
• 16.5cm (6.5-inch) IMPP composite-cone woofers
• 30mm polyester soft-dome tweeters
• 350W maximum input power
• 50W nominal input power
• 92dB sensitivity
• 4-ohm impedance
• Wide 27Hz–37,000Hz frequency response
• Shallow 30mm woofer mounting depth
• OEM-style connectors and fitting accessories included
• Suitable for factory head units and aftermarket audio systems

Improved sound with a factory appearance

The TS-Q160C-VW is designed to replace the original speakers while retaining the vehicle’s standard grilles and factory-style interior appearance.

Pioneer’s rigid yet lightweight IMPP composite woofer cone helps deliver clearer midrange and controlled bass with reduced distortion. The separate soft-dome tweeters improve vocal clarity and high-frequency detail, while Pioneer’s Open & Smooth sound concept creates a natural transition between the woofer and tweeter.

The result is a more balanced, spacious and enjoyable sound without visible aftermarket speaker grilles.

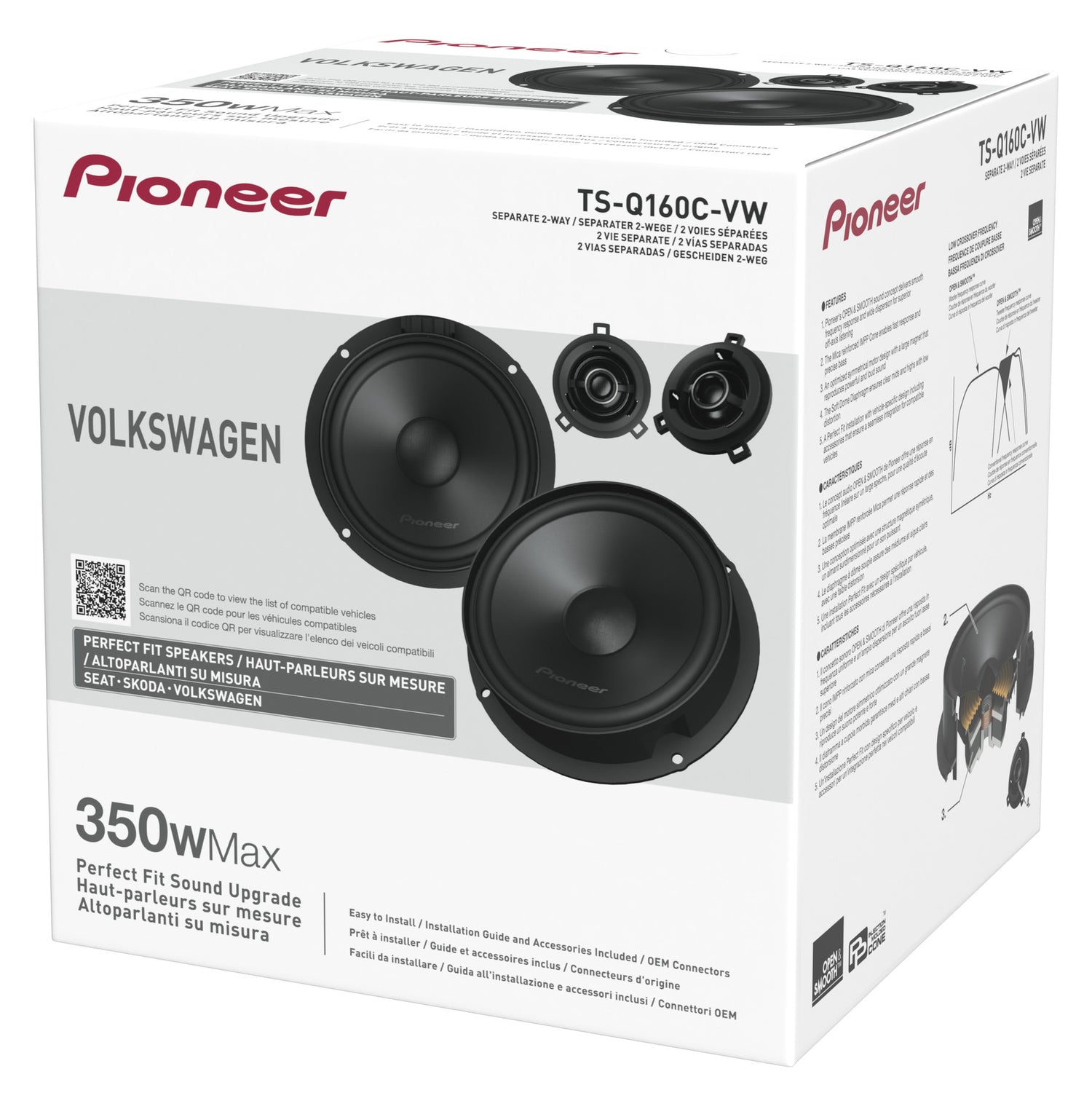

What is included?

• 2 × 16.5cm woofers
• 2 × 30mm tweeters
• 2 × woofer cushions
• Type A and Type B tweeter connector cables
• 2 × vehicle-specific tweeter brackets
• 8 × speaker mounting rivets
• Tweeter and connector fixing cushions
• Cable cushion
• Crimp sleeves
• Step-by-step installation instructions

Technical specifications

Vehicle compatibility

Designed for selected Volkswagen, SEAT and Skoda vehicles. Compatibility depends on the exact model, year, body style, speaker position and original factory audio system.

Please refer to the documentation below for instructions + compatibility documents.

Frequently asked questions

Will these work with my factory stereo?

They can be powered by many original factory head units. Their 92dB sensitivity also makes them suitable for systems without a separate aftermarket amplifier.

Does the kit include speakers for every door?

No. This is one component set containing two woofers and two tweeters. The required quantity and fitting position depend on the vehicle.

Are they completely plug and play?

Pioneer supplies OEM-style connectors, brackets and fitting accessories. Installation varies between models, and some vehicles may require crimping, riveting or minor adaptation.

Will I need an amplifier?

An amplifier is not essential, although a suitable amplifier or DSP amplifier can provide greater volume, control and overall sound quality.

Are speaker grilles included?

No. The speakers are normally fitted behind the vehicle’s existing factory grilles.

Can you install these for me?

Professional installation is available. Contact us with your vehicle details and postcode for a fitted quotation.
